ELECTROMECHANICAL

Pulsarlube M

SERIES M60 : Ø91mm(3.60") x 181mm(7.13") (H)
  • Electromechanical Lubricator-Pulsarlube M

    60

The Pulsarlube M consists of a vertical feed pump and a microprocessor chip allowing an average operating pressure of 30bar(435psi). It is designed to ensure reliable lubrication and at the same time reduce lubrication expenses with cost-saving Service Packs.
QUICK DOWNLOAD
The Pulsarlube M electromechanical automatic grease lubricator is primarily designed to compensate for the performance of conventional gas type automatic grease lubricator. It also offers superior advantages in cost competitiveness and user-friendliness.

The Pulsarlube M consists of a vertical self-priming pump, microprocessor control system, and large LCD display. This product is ideal for applications where: considerable back pressure in lube line exists, a precise lubrication is required, or a disposable gas type lubricator is not economical.

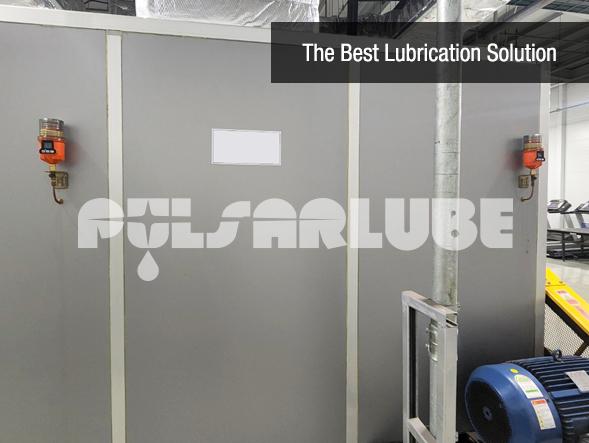

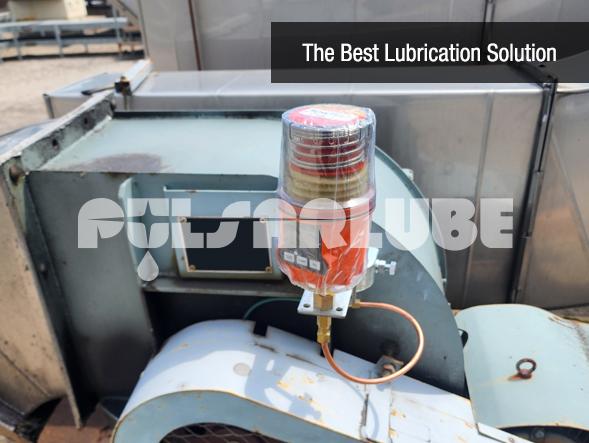

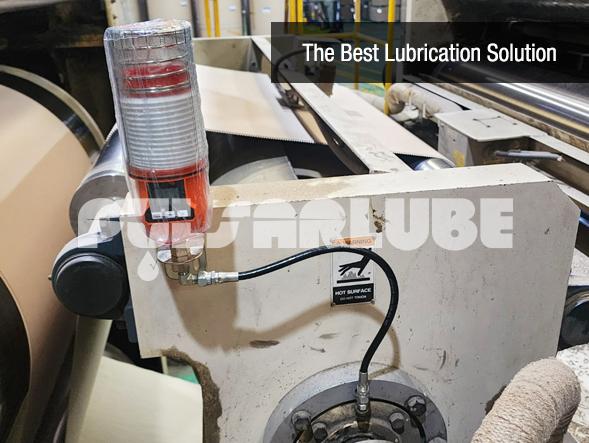

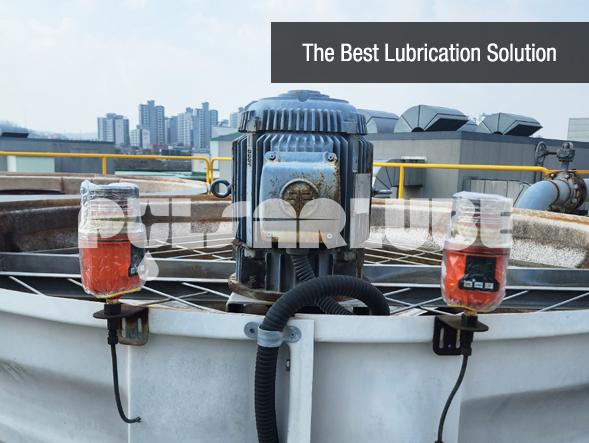

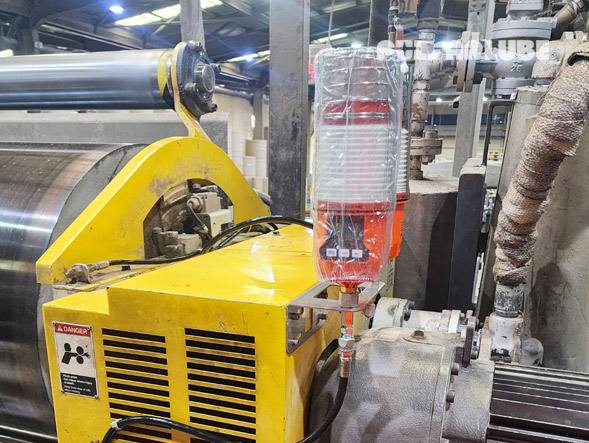

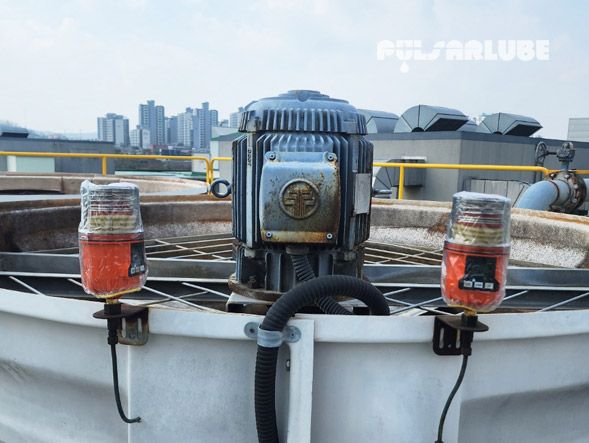

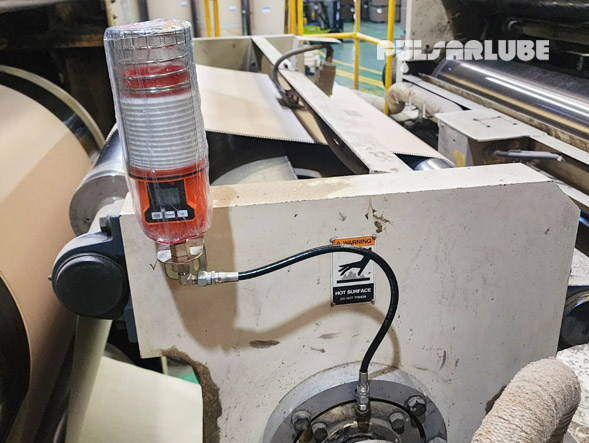

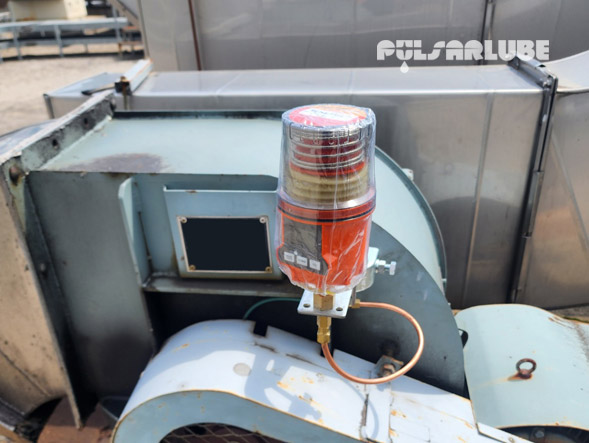

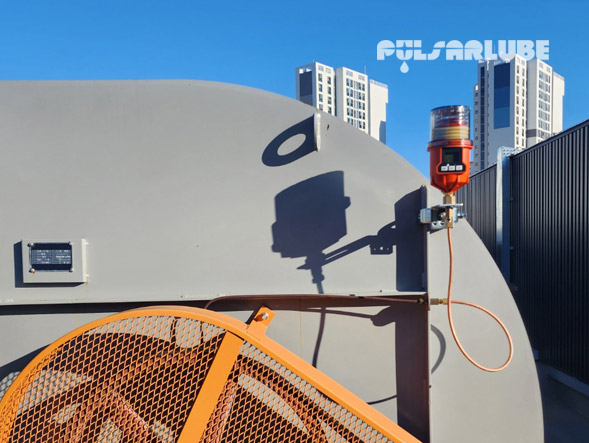

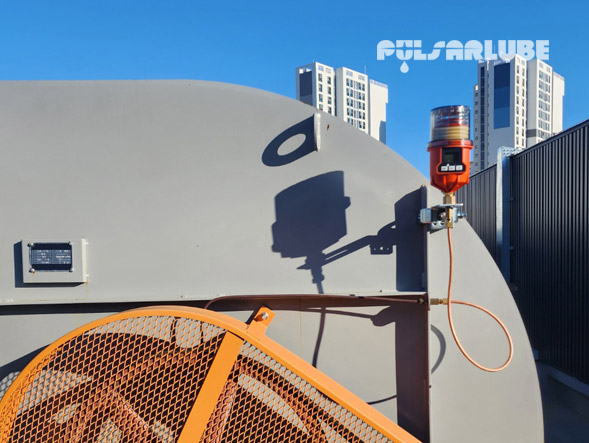

APPLICATIONS

-  5 Total

  1. 1
Search

Search

Please enter your password first.

CloseConfirm

FEATURES
30bar

30bar

Up to 8 lube points for multi-point / Max. 10m (33ft) for single point

LCD

LCD

Easy to program with built-in LCD and simple button controls

-40°C

-40°C

Optional Lithium Battery Pack available for low temperature usage

Electromechanical Lubricator

Service Pack

Substantial savings from the use of replaceable grease pouches and battery packs

PRODUCT INFO

CROSS SECTION

Electromechanical Lubricator Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Grease Pouch Capacity 60ml/125ml/250ml/500ml (replaceable)
Power Supply DC 4.5V Battery Pack
Operating Pressure 30~60bar (435~870psi)
Operating Temperature Standard Alkaline Battery : -15˚C~60˚C (5 ˚F~140˚F)
Optional Lithium Battery : -40˚C~60˚C (-40 ˚F~140˚F)
Dispensing Periods 1~12 month
Remote Installation Max. 10m (33ft) with O.D. Ø6 tube
Multi-Point Installation Max. 6m (20ft) with O.D. Ø6 tube (Up to 8 lube points)
Product Certifications
Certification Description
IP Code
CE
KC
FCC
RoHS

INSTALLATIONS

Reducer
Reducer
Part No. Description
A001 Reducer, 3/8"F x 1/4"M Adaptor (Brass)
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
A002-S Reducer, 3/8"F x 1/8"M Adaptor (Brass)
Socket + Pipe + Reducer
Socket + Pipe + Reducer
Part No. Description
A011 Socket, 1/4"F x 1/4"F Adaptor (Brass)
A012 Socket, 1/8"F x 1/8"F Adaptor (Brass)
Part No. Description
A121 Pipe,1/4”M x 1/4”M x 50mm (Steel)
A122 Pipe,1/4”M x 1/4”M x 100mm (Steel)
A123 Pipe,1/4”M x 1/4”M x 150mm (Steel)
A124 Pipe,1/4”M x 1/4”M x 200mm (Steel)
Part No. Description
A106 Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel)
A107 Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel)
A108 Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel)
A109 Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel)
45˚ Elbow
45˚ Elbow
Part No. Description
A023 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A024 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass)
90˚ Elbow
90˚ Elbow
Part No. Description
A019 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass)
A020 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass)
A021 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass)
A022 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass)

If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)

Comments
  • All Parts should be assembled tightly with PTFE tape.
  • For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
  • If the bearing lube point is NPT, use the thread converter.
Kit No. 1250RC-1
Kit No. 1250RC-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B051 Self Drilling Screw, #8 x 20
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M
A214-1 Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type)
A243 Thread Converter, PT1/8"F x NPT1/8"M (Brass)

Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.

Electromechanical Products using a divider block ( up to 8 points )
Electromechanical Products using a divider block ( up to 8 points )
Part No. Description Q'TY
A002 Reducer, 3/8″F x 1/8″M Adaptor (Brass) 1
B002 Mounting Bracket, “L”Shape 1
B051 Self Drilling Screw, #8 x 20 1
DU-2RS ~ DU-8RS DU Type Divider Block, Grease Type, 2 Ports ~ 8 Ports 1
B058 Tooth Washer 2
A240 Tube Fitting, Push-In Type, PC6-PT1/8”M 3
A214-1 Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) 1
A243 Thread Converter, PT1/8″F x NPT1/8″M (Brass) 1
