ADVANCED FEATURES
Pulsarlube BT
SERIES

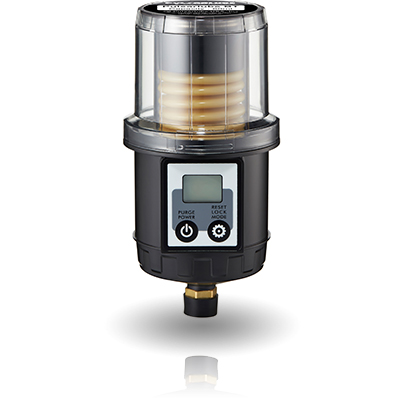

BT60 : Ø91(3.60") x 181mm(7.13") (H)
-
60

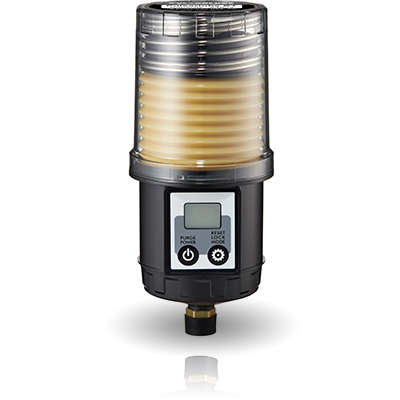

The Pulsarlube BT Bluetooth-Enabled Automatic Electromechanical Lubricator.
The Pulsarlube BT is a Bluetooth-enabled automatic lubricator that could be monitored and controlled via an app on a mobile device in Bluetooth range (5~20m), without physical access to the lubricators.
Lubricators will be recognized in the app as long as they are in Bluetooth detection range so finding lubricators, monitoring their status, and changing settings will be simple and convenient. The data in the mobile app is shared with our web application server and can be downloaded in .csv or .txt format for optimal monitoring.
With BLE (Bluetooth Low Energy) technology applied, there is low power consumption from the Bluetooth module and the lubricator can operate reliably even though a battery pack is used for power. The IP65 rating allows outdoor installations with protection against dust and water spray.
By incorporating Bluetooth technology, The Pulsarlube BT has been developed to meet your lubrication needs with a technological convenience never before offered.
Lubricators will be recognized in the app as long as they are in Bluetooth detection range so finding lubricators, monitoring their status, and changing settings will be simple and convenient. The data in the mobile app is shared with our web application server and can be downloaded in .csv or .txt format for optimal monitoring.
With BLE (Bluetooth Low Energy) technology applied, there is low power consumption from the Bluetooth module and the lubricator can operate reliably even though a battery pack is used for power. The IP65 rating allows outdoor installations with protection against dust and water spray.
By incorporating Bluetooth technology, The Pulsarlube BT has been developed to meet your lubrication needs with a technological convenience never before offered.
FEATURES

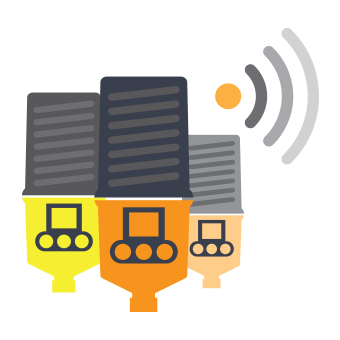

Enhanced User-Friendliness
Easy to monitor nearby lubricators within a close proximity of your mobile (proximity pairing)
Possible to change mode settings while lubricators are in operation

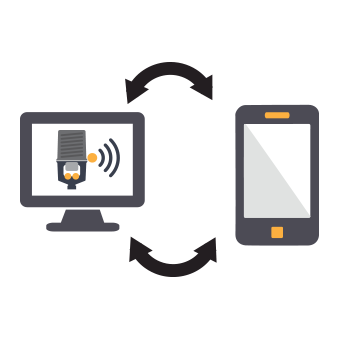

Integrated DB Management
Easy to share DB between mobile device and server
Safe Working Environment
Remotely monitor lubricator status in hazardous and inaccessible work areas via mobile App in close proximity
Service Pack
Substantial savings from the use of replaceable grease pouches and battery packs
PRODUCT INFO

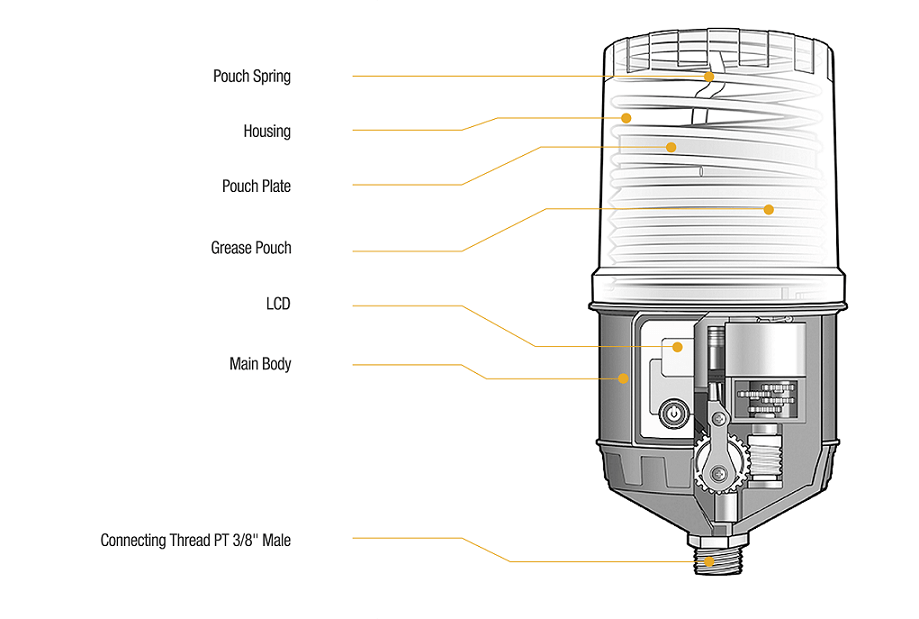

CROSS SECTION
SPEC & CERTIFICATIONS
| SPEC | Description |
|---|---|
| Grease Pouch Capacity | 60ml / 120ml / 240ml (pre-set) |
| Power Supply | DC 4.5V Battery Pack |
| Operating Pressure | 30~60bar (435~870psi) |
| Operating Temperature | Standard Alkaline Battery : -15˚C ~ 60˚C (5 ˚F ~ 140˚F) Optional Lithium Battery : -40˚C ~ 60˚C (-40 ˚F ~ 140˚F) |
| Dispensing Periods | 1 ~ 12 month |
| Remote Installation | Max. 6m (20ft) with Ø6 tube |
| Multi-Point Installation | Max. 3m (10ft) with Ø6 tube (Up to 8 lube points) |
| IP Code | IP65 |
| Product Certifications | CE / KC / FCC / RCM / NCC / SRRC / SIG / ICASA / J-MIC / NBTC |
| Detection Range | 5 ~ 20m depending on installation environment |
| Bluetooth Specifications | Bluetooth 4.1 (class 2) |
| Packaging | 10 Units/Case |
| Certification | Description |
|---|---|
| IP Code | IP65 |
| KC | R-RMM-kLT-BT240 |
| CE | CE |
| FCC | 2APJH-BT240 |
| RCM | RCM-001311 |
| NCC | 60 : CCAH19LP0122T6 120 : CCAH19LP0121T4 240 : CCAH19LP0120T2 |
| SRRC | BT60 CMIIT ID : 2019DJ0846 BT120 CMIIT ID : 2019DJ0847 BT240 CMIIT ID : 2019DJ1090 |
| SIG | D042809 |
| ICASA | TA-20195127 |
| J-MIC | 022-190186 |
| NBTC | TH_SDOC_BT60 / BT120 / BT240 |

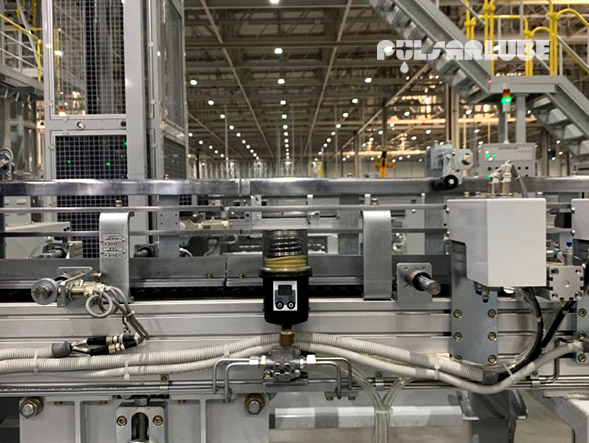

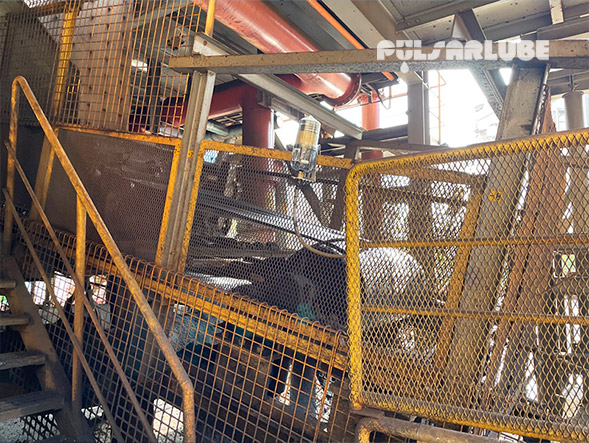

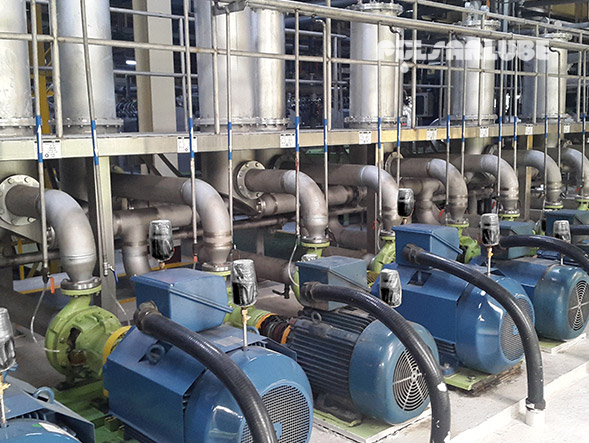

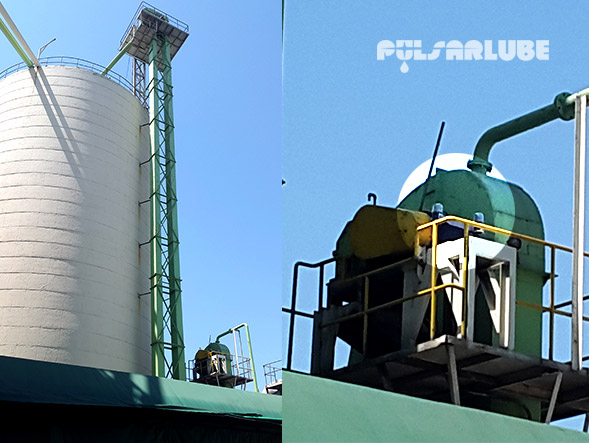

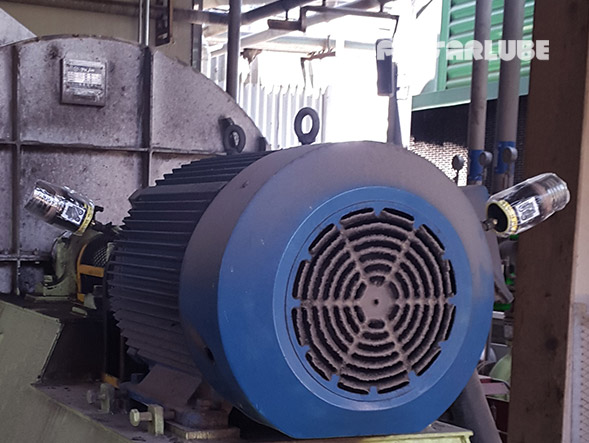

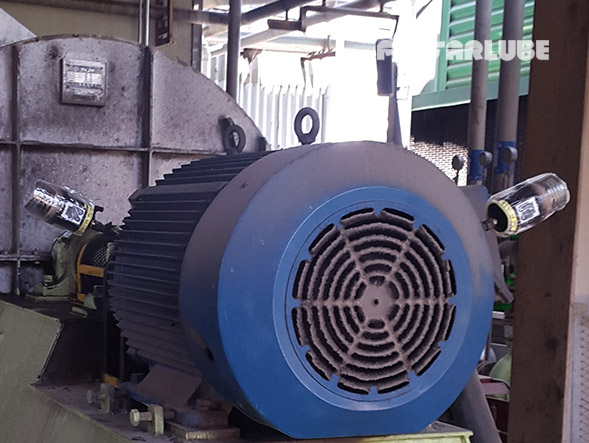

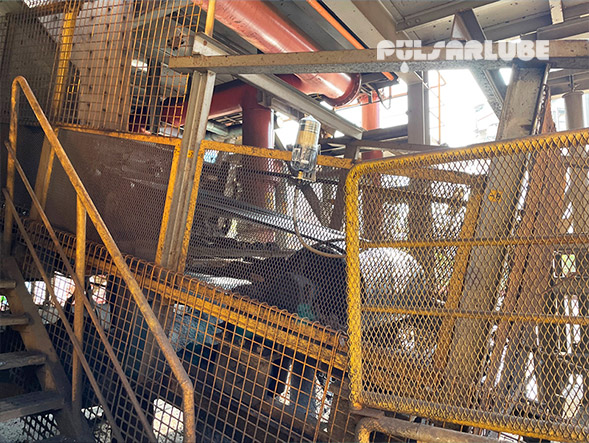

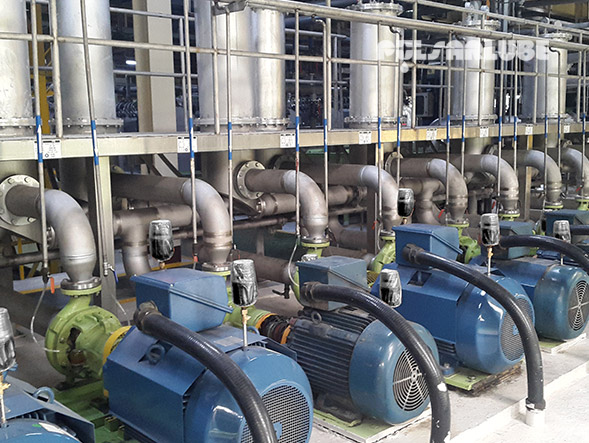

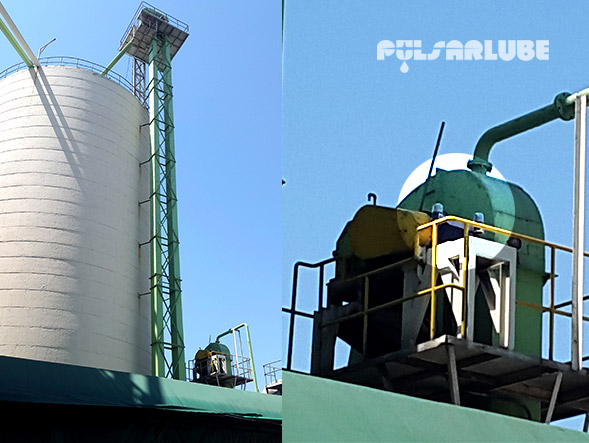

INSTALLATIONS
| Part No. | Description |
|---|---|
| A001 | Reducer, 3/8"F x 1/4"M Adaptor (Brass) |
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| A002-S | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| Part No. | Description |
|---|---|
| A011 | Socket, 1/4"F x 1/4"F Adaptor (Brass) |
| A012 | Socket, 1/8"F x 1/8"F Adaptor (Brass) |
| Part No. | Description |
| A121 | Pipe,1/4”M x 1/4”M x 50mm (Steel) |
| A122 | Pipe,1/4”M x 1/4”M x 100mm (Steel) |
| A123 | Pipe,1/4”M x 1/4”M x 150mm (Steel) |
| A124 | Pipe,1/4”M x 1/4”M x 200mm (Steel) |
| Part No. | Description |
| A106 | Pipe, 1/8"M x 1/8"M x 50mm for divider block (Steel) |
| A107 | Pipe, 1/8"M x 1/8"M x 150mm for divider Pipe, 1/8"M x 1/8"M x 100mm for divider block (Steel) |
| A108 | Pipe, 1/8"M x 1/8"M x 150mm for divider block (Steel) |
| A109 | Pipe, 1/8"M x 1/8"M x 200mm for divider block (Steel) |
| Part No. | Description |
|---|---|
| A023 | 45° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A024 | 45° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
| Part No. | Description |
|---|---|
| A019 | 90° Elbow, 1/4”F x 1/4”F Adaptor (Brass) |
| A020 | 90° Elbow, 1/8”F x 1/8”F Adaptor (Brass) |
| A021 | 90° Elbow, 1/4”M x 1/4”F Adaptor (Brass) |
| A022 | 90° Elbow, 1/8”M x 1/8”F Adaptor (Brass) |
If the bearing lube point is NPT, use the thread converter (A243) to convert thread metric to inch for bearing zerk (USA only)
- All Parts should be assembled tightly with PTFE tape.
- For optimal performance with remote installation kits, using an NLGI #1 grade grease is recommended.
- If the bearing lube point is NPT, use the thread converter.
| Part No. | Description |
|---|---|
| A002 | Reducer, 3/8"F x 1/8"M Adaptor (Brass) |
| B002 | Mounting Bracket, “L”Shape |
| B051 | Self Drilling Screw, #8 x 20 |
| B057 | Washer |
| A012 | Socket, 1/8”F x 1/8”F Adaptor (Brass) |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8”M |
| A214-1 | Distribution Tubing, O.D. 1/4"(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) |
| A243 | Thread Converter, PT1/8"F x NPT1/8"M (Brass) |
Note : For remote installation using a tube, use an 8mm O.D. (5/16″) tubing pre-filled with the same or compatible grease as the grease contained in the unit. Recommend using under short dispensing period settings due to powerful dispensing pressure.
| Part No. | Description | Q'TY |
|---|---|---|
| A002 | Reducer, 3/8″F x 1/8″M Adaptor (Brass) | 1 |
| B002 | Mounting Bracket, “L”Shape | 1 |
| B051 | Self Drilling Screw, #8 x 20 | 1 |
| HU-2RS ~ HU-8RS | HU Type Divider Block, Grease Type, 2 Ports ~ 8 Ports | 1 |
| B058 | Tooth Washer | 2 |
| A240 | Tube Fitting, Push-In Type, PC6-PT1/8”M | 3 |
| A214-1 | Distribution Tubing, O.D. 1/4″(6mm) Nylon Tubing, 10ft Pre-filled with (Grease Type) | 1 |
| A243 | Thread Converter, PT1/8″F x NPT1/8″M (Brass) | 1 |
