OILER

Pulsarlube OL500

SERIES OL500 : Ø94mm(3.70") x 229mm(9.02") (H)
  • Oil Lubricator Pulsarlube OL

    OL500

The Pulsarlube OL500 is our latest innovation in oil lubrication with an average operating pressure of 10bar.
The Pulsarlube OL500 oil lubricator consists of the main body with a vertical self-priming pump controlled by the microprocessor, a 500ml oil reservoir, and a battery pack. This product has the ability to precisely deliver very small amounts of lubricant with selectable intermittent dispensing cycle. The volume of output is adjustable from 0.70ml to 33.4ml/day, equivalent to the service period of Half month to 24months for the 500ml oil reservoir. It is available with up to 4 feeds by using optional installation kits.

NOTE : The Pulsarlube OL500 is a reusable unit but the battery pack must be replaced when each dispensing period set is complete.

NOTE : The OL500 is also available as MSPOL500/VDC or VAC versions.
FEATURES
Oil Lubricator 10bar

10bar

High operating pressure with a wide range of acceptable oil viscosity

Oil Lubricator Easy Refill

Easy Refill

Refillable oil reservoir

Oil Lubricator Accessory Kit

Accessory Kit

Up to 4 lube points for multi-point / Max. 6m (20ft) for a single point

Oil Lubricator LCD

LCD

Easy to program with built-in LCD and simple button controls

PRODUCT INFO

CROSS SECTION

Oil Lubricator Cross-section

SPEC & CERTIFICATIONS

Technical Specifications
SPEC Description
Oil Reservoir Capacity 500ml (refillable)
Power Supply DC 4.5V Battery Pack
Operating Pressure 10bar (145psi) (depending on oil viscosity)
Operating Temperature Standard Alkaline Battery : -15˚C~60˚C (5˚F~140˚F)
Dispensing Periods 1, 2, 4, 6, 12, 18, 24 month & H (15 days)

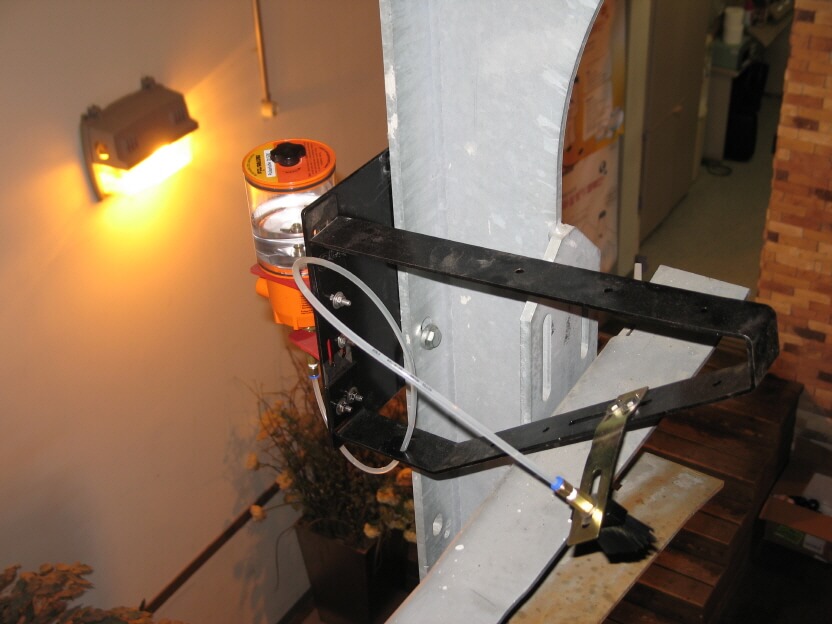

Remote Installation Max. 6m (20ft) with O.D. Ø4 tube
Multi-Point Installation Max. 3m (10ft) with O.D. Ø4 tube (Up to 4 lube points)
Oil Viscosity Range 100~10,000 cSt@40˚C
* Special instructions available for 10~100 cSt@40˚C
IP Code IP 54
Packaging 10 Units/Case
Product Certifications
Certification Description
IP Code IP54

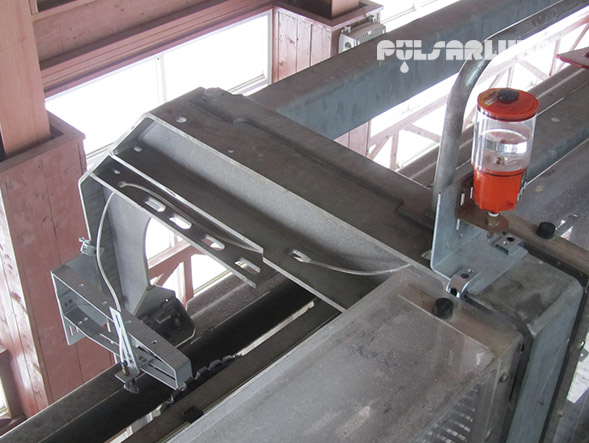

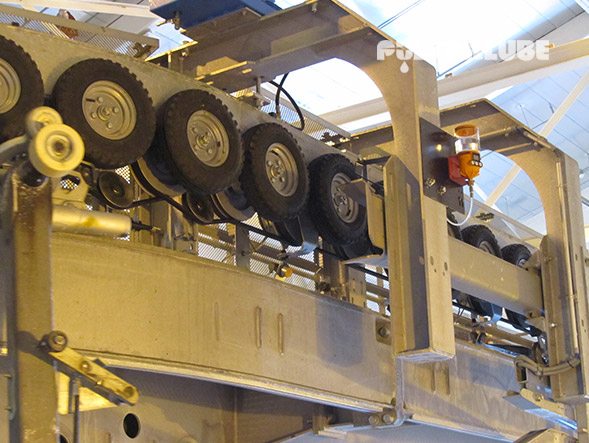

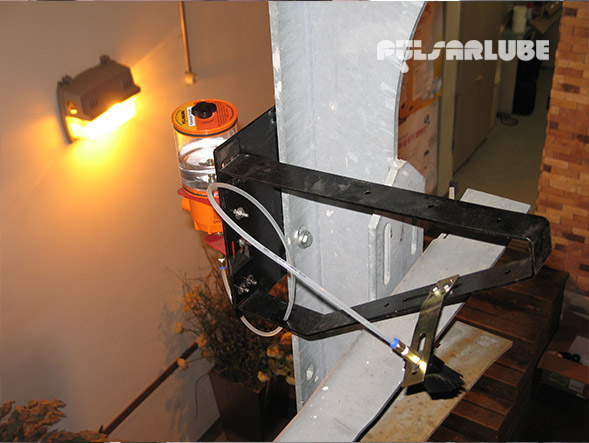

INSTALLATIONS

Oil Lubricator Kit No. 1250RO-1
Kit No. 1250RO-1
Part No. Description
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass)
B002 Mounting Bracket, “L”Shape
B057 Washer
A012 Socket, 1/8”F x 1/8”F Adaptor (Brass)
C021-1 O.D. 4mm Nylon Tubing (Clear), 10ft
C010 Tube Clamp, Dia. 4mm x 1R
C007 Tube Fitting, Dia. 4mm x PT1/8"M
C011 Insert, Dia. 4mm x 2.5mm
C009 Sleeve Ring, Dia. 4mm

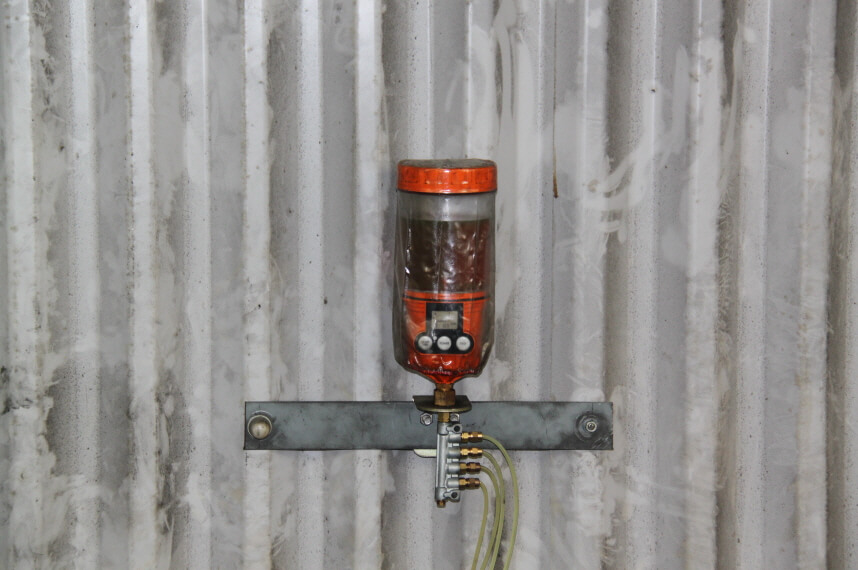

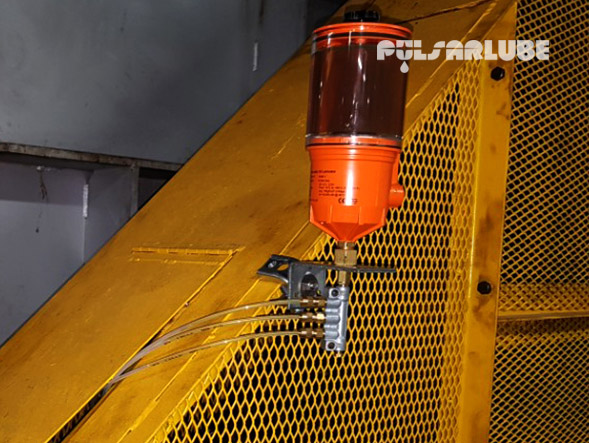

Oil Lubricator Kit No. 1250RC2~4
Kit No. 1250RC2~4
Part No. Description Available Kits & Component Parts
1250RO-2 1250RO-3 1250RO-4
OL Unit Available Separately Sold separately
A002 Reducer, 3/8"F x 1/8"M Adaptor (Brass) 1EA
B002 Mounting Bracket, "L"Shape 1EA
B057 Washer 1EA
B051 Self Drilling Screw, #8 x 20 7EA 9EA 11EA
C006 Reducer, PT 1/8"F x M8 x 1P 1EA
C003-1 Distributor, 3 (1P) M8 x 1P 1EA - -
C003-2 Distributor, 4 (2P) M8 x 1P - 1EA -
C003-3 Distributor, 5 (3P) M8 x 1P - - 1EA
C004 Resistance Valve, #1 Distributor Spray 2EA 3EA 4EA
C021-2 Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 20ft (6m) 1EA - -
C021-3 Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 30ft (9m) - 1EA -
C021-4 Distribution Tubing, O.D. 4mm x I.D. 2.5mm Nylon Tubing, 40ft (12m) - - 1EA
C010 Tube Clamp, Dia. 4mm x 1R 4EA 6EA 8EA
C007 Tube Fitting, Dia. 4mm x PT1/8"M 2EA 3EA 4EA
C011 Insert, Dia. 4mm x 2.5mm 2EA 3EA 4EA
C009 Sleeve Ring, Dia. 4mm 4EA 6EA 8EA
Cable Tie 4EA 6EA 8EA
